Logixer POW Ring Smart Power Meter – Compact Energy Monitoring for Smarter Spaces in Dubai
Compact Power Monitoring Made Simple
The Logixer POW Ring Smart Power Meter is a non-intrusive, ring-type current transformer (CT) power meter designed for effortless energy tracking in homes, offices, and commercial spaces. It’s the ideal solution for users who want to monitor real-time energy usage of appliances without rewiring.
Simply clip the CT ring around the live wire of your appliance or circuit—no need to cut or disconnect cables. The device instantly measures real-time voltage, current, power, and total consumption, giving you full visibility and control via the Logixer app.
Product
Specifications
POWCT- POW Ring Smart Power Meter Non-contact Current Transformer Tracks Your Energy Usage
Logixer POW Ring Smart Power Meter is a compact, Wi-Fi-enabled energy monitoring solution featuring a 100A split-core CT sensor for safe, non-intrusive installation. Monitor real-time energy usage by individual appliances, rooms, or circuits—ideal for residential, commercial, and industrial setups. Supports bidirectional energy flow for solar monitoring and includes a dry contact relay for triggering external contactors to manage high-power loads. Also offers up to 6 months of historical data via the Logixer app.
- Product Model: POWCT
- Rating: 100-240V~50/60Hz 2W
- Wi-Fi Standard: IEEE 802.11 b/g/n 2.4GHz
- Antenna interface type : SMA
- Transformer interface type: RJ9

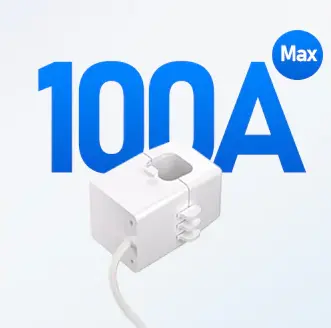

- Transformer current detection range: 0-100A
- Measurement Category: CAT II 0-100A 300V-MAX
- Casing Material: PC (Polycarbonate)
- Working Temperature: -10°C to 40°C
-
Maximum diameter of wire that the CT sensor can fit:
15mm Max

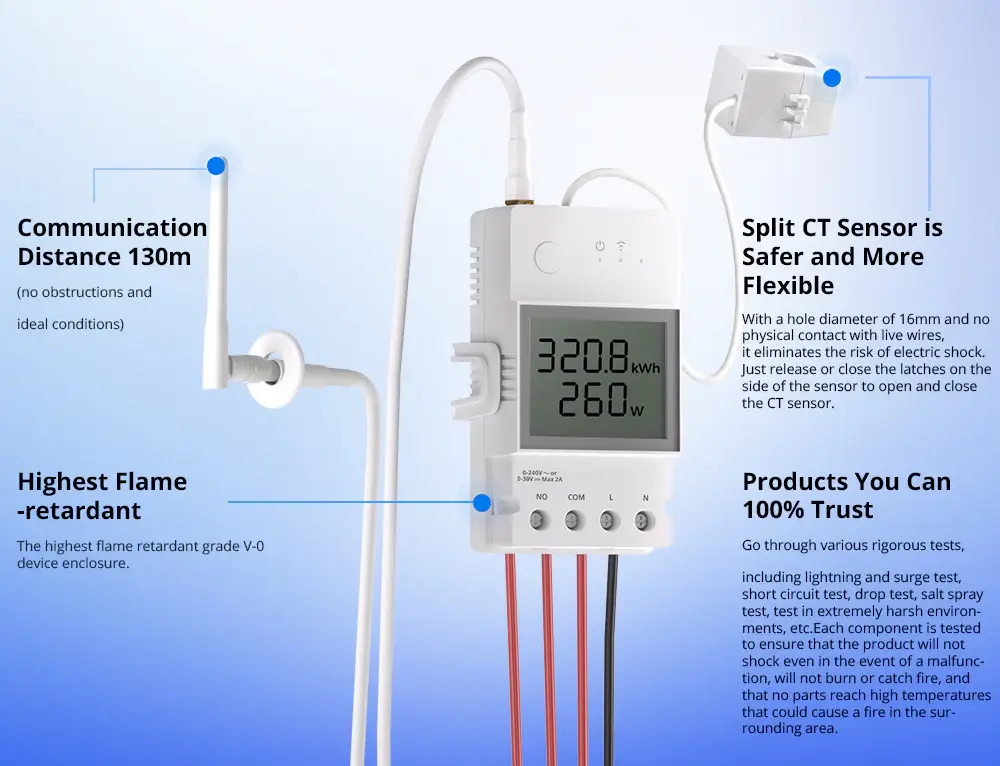

Safe and Simple to Use – Built for Real-World Reliability
📡 Long-Range Communication
Enjoy stable wireless connectivity with up to 130 meters of communication range in ideal, unobstructed conditions.
🧲 Split-Core CT Sensor: Safe & Flexible
Featuring a 16mm diameter clamp, the CT sensor easily clips around live wires without direct contact—eliminating the risk of electric shock. Just snap it open, place it, and close securely for quick, safe installation.
🔥 Flame-Retardant Housing
Crafted from V-0 grade flame-retardant materials, the Logixer POW Ring offers top-tier protection against fire hazards, ensuring a safe environment.
🛡️ Built to Withstand Everything
Tested for lightning resistance, drop impact, short circuits, and extreme temperatures, every unit is engineered to perform even under harsh conditions—without risk of sparking, melting, or failing.
Split Core Current
Transformer
Energy
Monitor

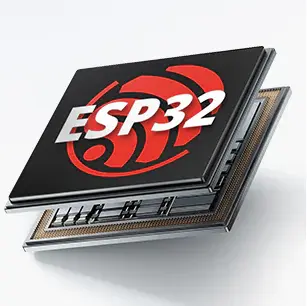

ESP32
Chip
Safety
Design
Support Contactor
Control
6-month Historical
Data Hold
Overload
Protection
Compatible
Set
Timers
Push
Notifications
Real-Time Power Monitoring with Logixer POWCT

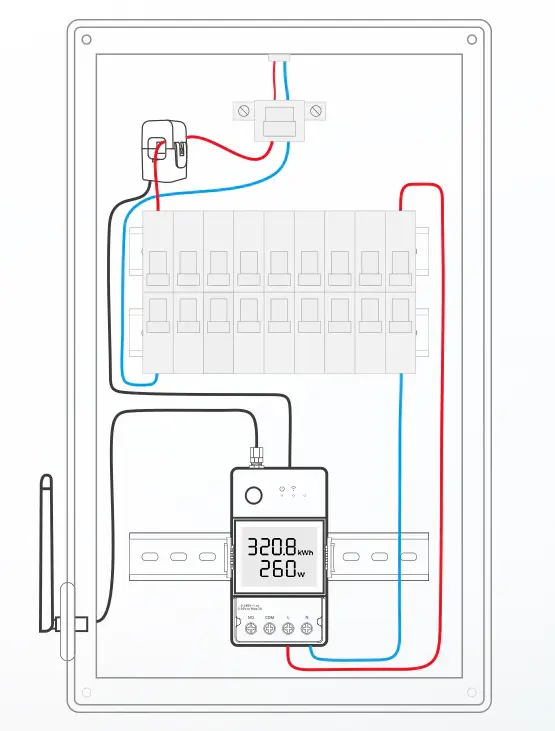

Take control of your energy usage with the Logixer Smart Power Meter (POWCT). Designed for installation inside your home's electrical panel, it delivers accurate, real-time monitoring of your household or room-specific energy consumption.
Track Key Metrics Instantly:
- Voltage Range: AC 100V ~ 240V
- Current Range: AC 0A ~ 100A
- Power Range: 0W ~ 24,000W
Perfect for smart homes, solar energy setups, or industrial monitoring, the Logixer POWCT helps you gain deeper insights into your power usage—enabling better energy management and cost savings.
Effortless
Energy Monitoring with Non-Contact CT
The Logixer POWCT Smart Power Meter features a non-contact split-core CT sensor for safe and easy installation—no direct contact with live wires required. Monitor solar panel output or grid usage with two powerful measurement modes:

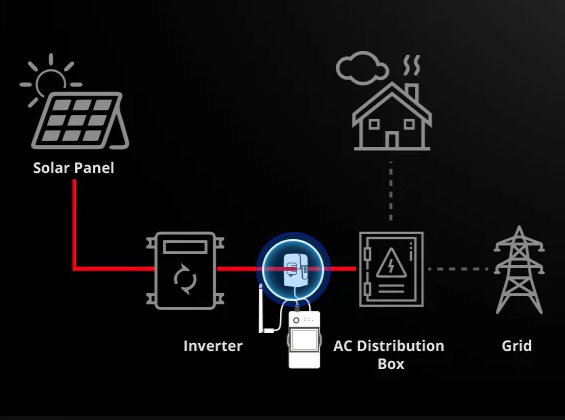

- Uni-directional Mode: View how much power your solar panels are generating in real time.

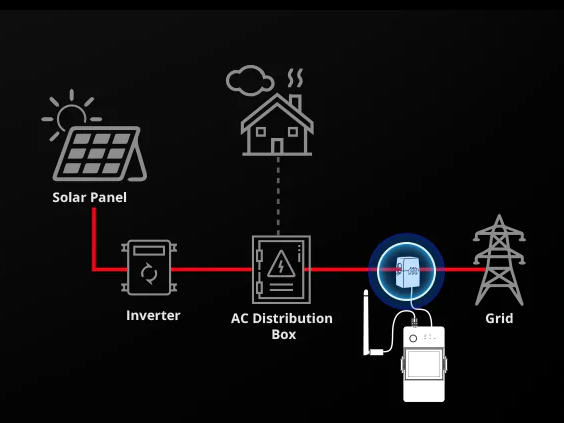

- Bi-directional Mode: Track both power consumed from the grid and excess power fed back into it—ideal for solar setups.
Bi-directional
Mode
Uni-directional
Mode

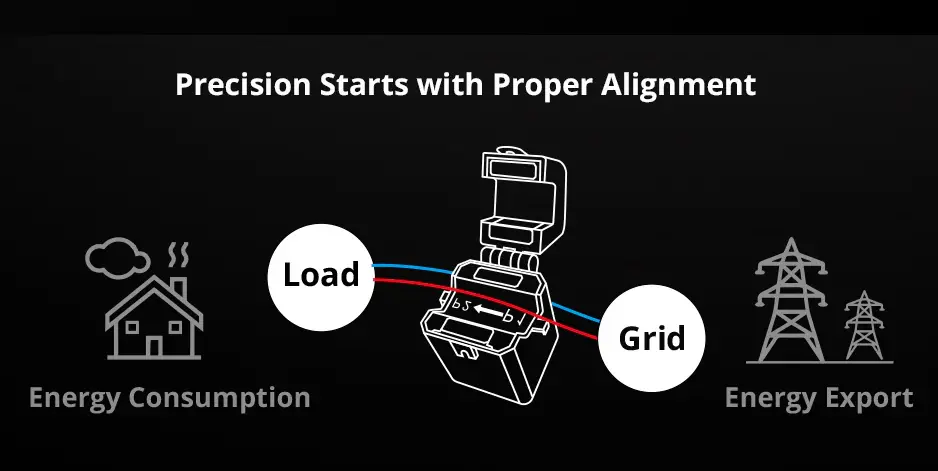

Precision
Starts with Proper Alignment
Ensure correct CT sensor orientation for accurate readings—power consumption is measured when the current flow matches the sensor's arrow, while export is recorded when direction reverses.
Requires POWCT firmware V1.3.1+ and App version V5.13.0+ for bidirectional
support.
Smart Control, Simple Operation
With Logixer POWCT, no hub is needed—just connect directly to your Wi-Fi. Easily manage appliances using voice assistants like Alexa, schedule on/off times with timer settings, and enjoy full hands-free control over your energy usage.

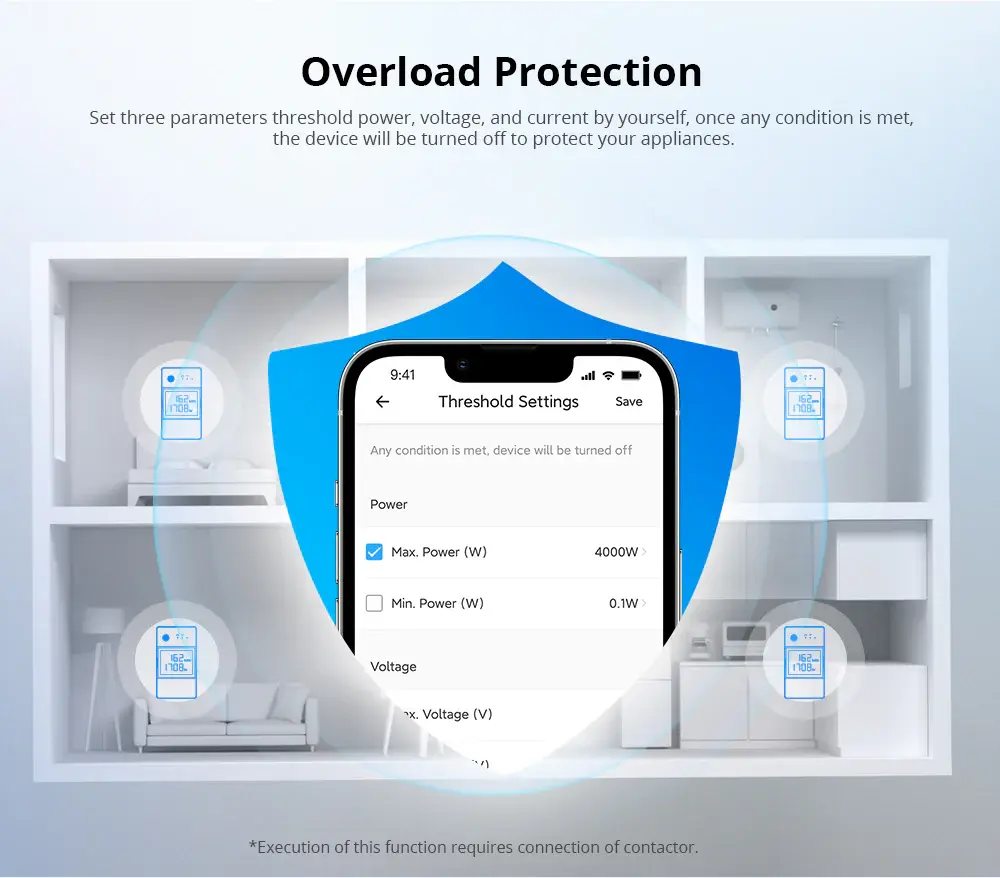

Smart Overload Protection
Protect your appliances with custom threshold settings for power, voltage, and current. When any set limit is exceeded, the Logixer POWCT will automatically shut off the device to prevent damage. (*Contactor required for execution.)

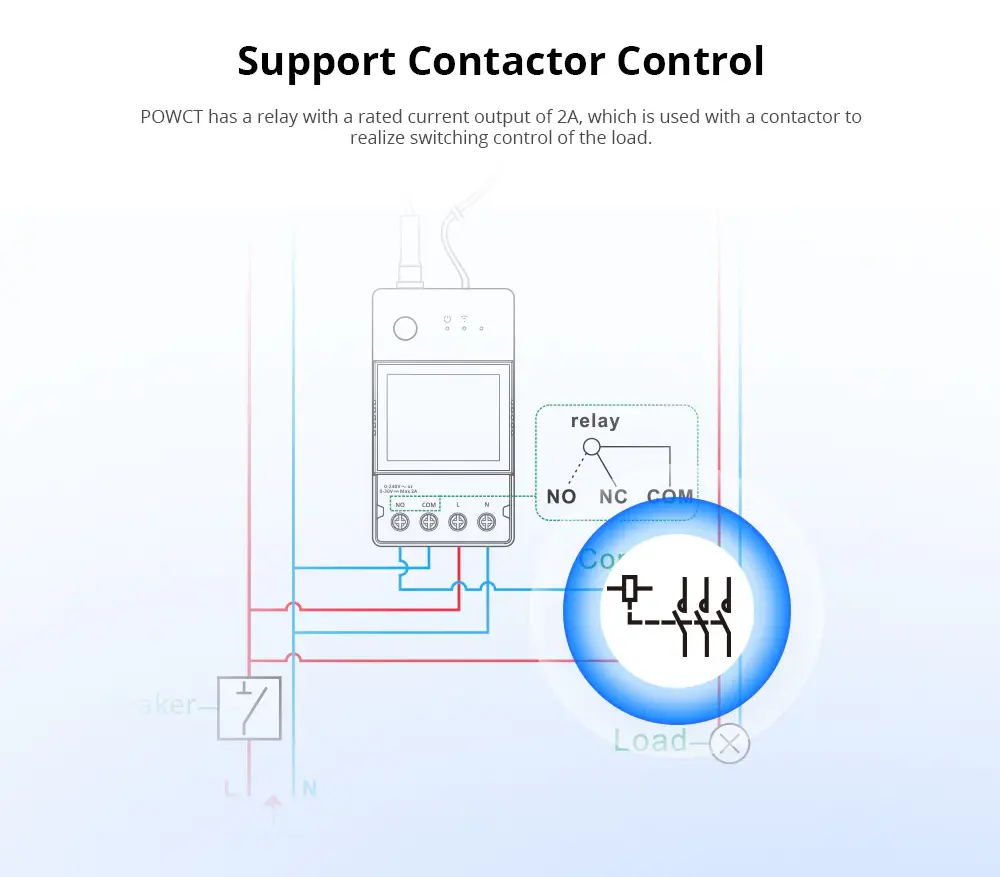

Contactor Control for High-Power Loads
The Logixer POWCT features a built-in relay with a rated 2A output, allowing you to connect and control an external contactor. This makes it ideal for managing larger electrical loads safely and efficiently—perfect for industrial or high-demand residential setups.
Smart Scene Automation for Energy Savings
Optimize your energy usage with intelligent automation. When your solar panel production exceeds 30kWh in a day, the Logixer POWCT Smart Power Meter can trigger smart scenes to automatically switch off non-essential appliances. This not only helps conserve energy but also reduces your electricity bills — perfect for homes looking to make the most of solar efficiency.
Track, Store & Export Energy Data for 6 Months
With the Logixer POWCT Smart Power Meter, your energy usage history is always within reach. It securely stores up to 6 months of detailed consumption data—even during power outages or device disconnections. View daily, monthly, or yearly reports right from your app and export the data anytime for analysis, audits, or record-keeping.

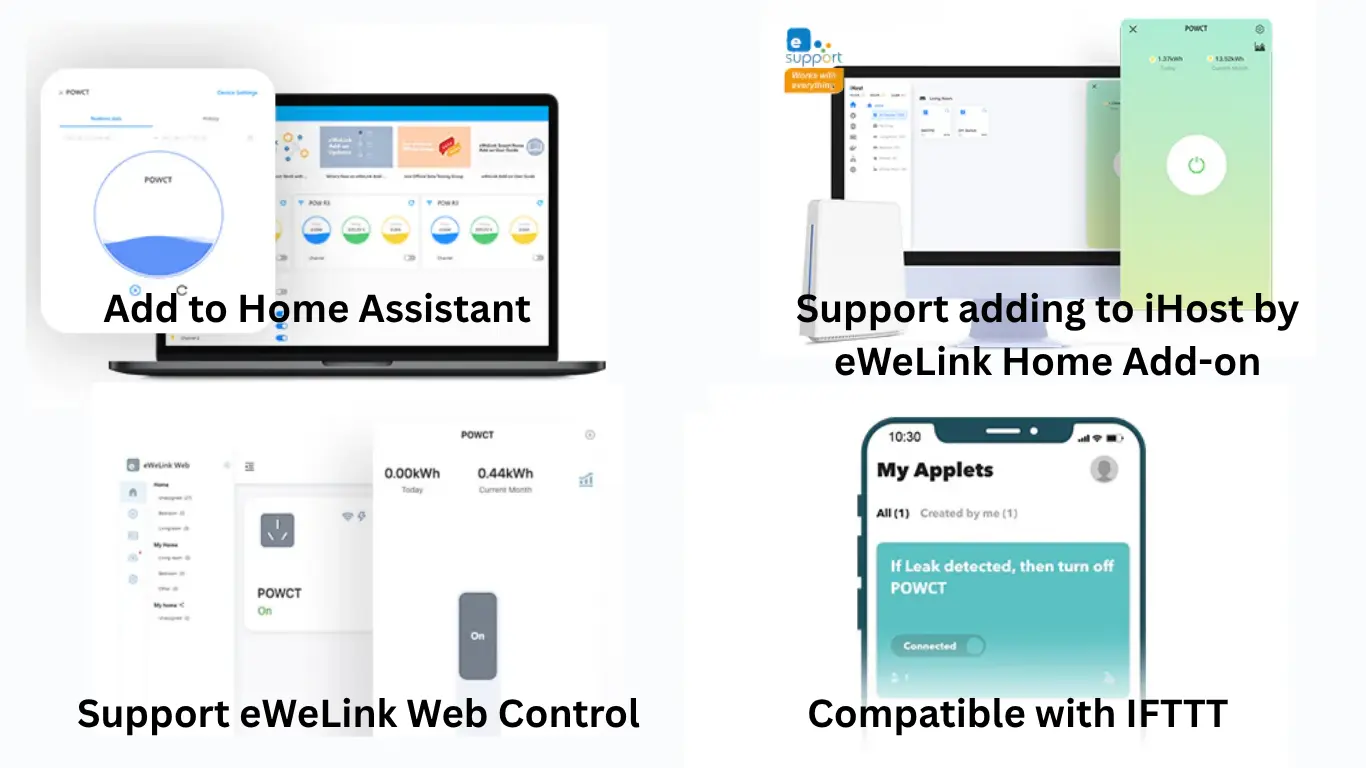

Smarter Integration, Greater Control
Easily connect the Logixer Power Monitor to platforms like Home Assistant, IFTTT, and iHost using the eWeLink Smart Home Add-on. View real-time data, build automation routines, and manage your devices via the eWeLink Web Control interface for seamless smart energy management.
Compatible with Apple Home via Matter
Easily connect Logixer non-Matter smart devices to your Apple ecosystem using a Matter Bridge. Control everything with Siri and Apple HomeKit, creating a unified and intelligent smart home experience.
Why Buy from Logixer?
At Logixer, we offer cutting-edge smart automation products backed by:
Take Full Control of Your Energy — Order the Logixer Smart Power Meter Today!
Monitor, manage, and optimize your electricity usage like never before with the Logixer Smart Power Meter. Equipped with a non-invasive CT sensor and Wi-Fi connectivity, this intelligent device delivers real-time energy data, solar monitoring, overload protection, and automation support — all in one compact solution. Perfect for homes, businesses, and solar setups.
