4-Channel Smart DIN Rail Switch with RF & WiFi Control for Automating Lighting and Home Appliances in Dubai
4-Gang Smart Switch for Home Automation
Looking for a powerful smart switch to control multiple devices in your home or workspace? The Logixer 4‑Channel Smart DIN‑Rail Switch is the perfect solution for automating up to four circuits with independent control. Whether it’s lighting, fans, motors, or other appliances, this switch makes smart automation easy, reliable, and efficient.
With both Wi-Fi and RF control, this switch fits right into your smart home ecosystem—no hub required. It also supports advanced scheduling, interlocking, inching, and voice control through Google Assistant and Amazon Alexa.
Product
Specifications

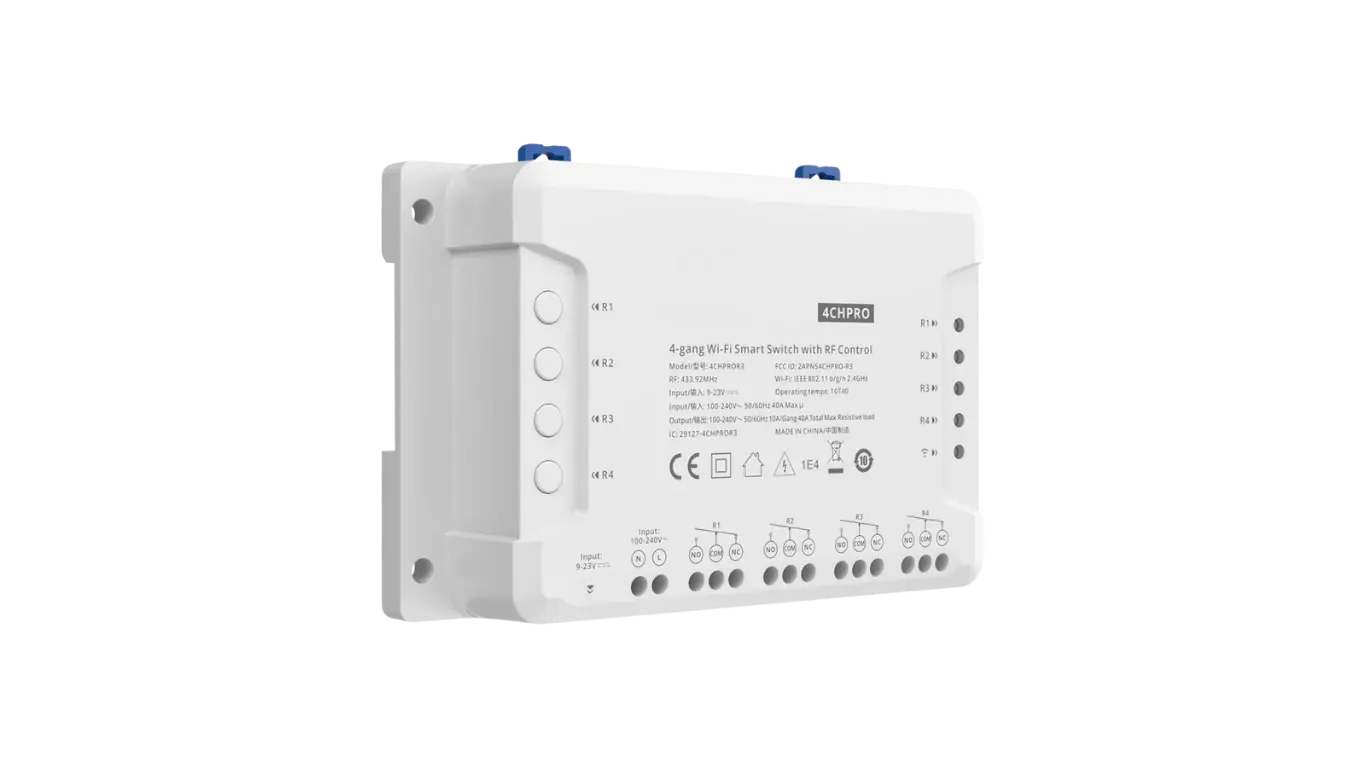

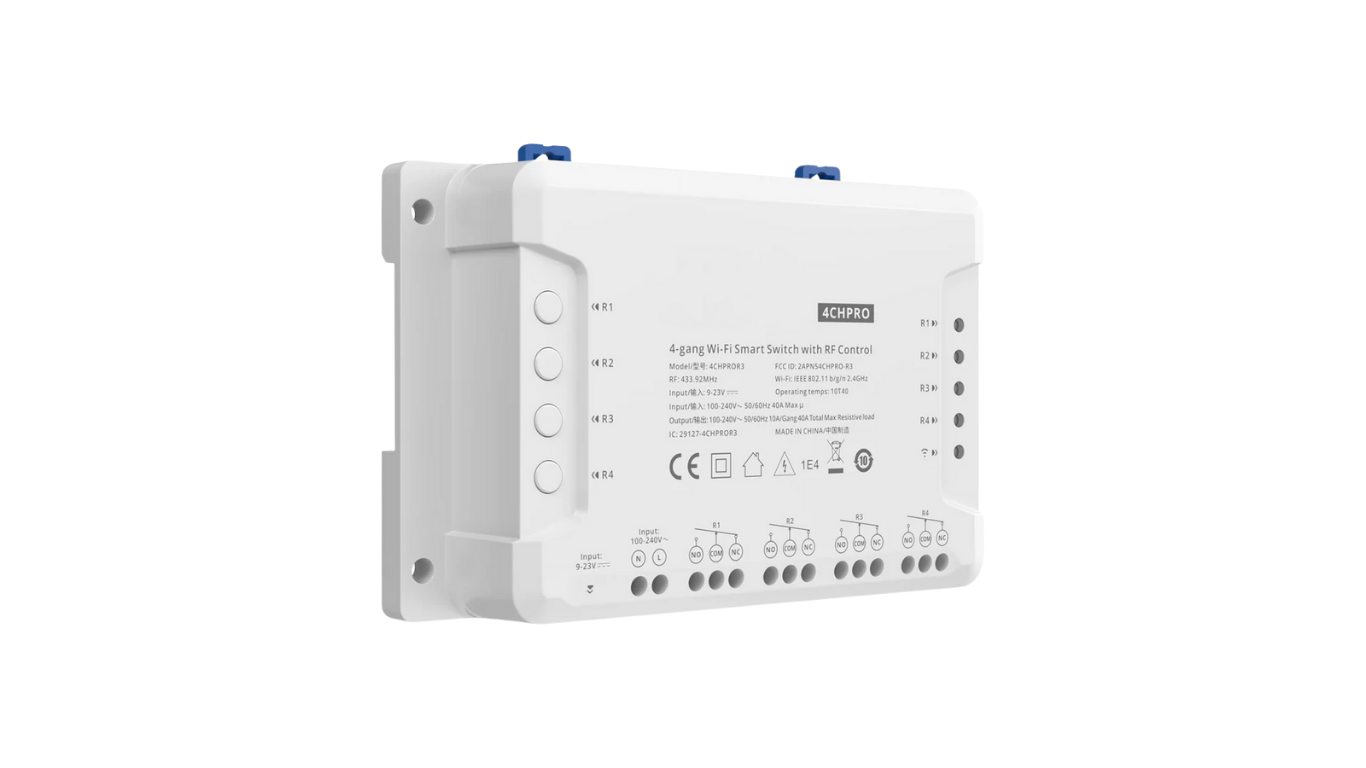

4CHR3 & 4CHPROR3 4-gang Wi-Fi Smart Switch with RF Control
The Logixer 4-Channel Smart Switch with RF & Wi-Fi Control is a powerful 4-gang smart solution designed to automate lighting, pumps, motorized gates, and more — all with remote app control, RF signal support, and dry contact compatibility. It’s the perfect choice for smart upgrades in homes, offices, and industrial setups.
Whether you're automating garage doors, curtain motors, or multi-zone lighting, this smart switch supports up to 10A per channel and is built for DIN rail mounting, offering a clean and professional installation. No additional hub is needed—simply connect to 2.4GHz Wi-Fi and control via the eWeLink app, RF remote, or voice assistants like Google Home and Alexa.
- Product Model: 4CHPROR3
- Voltage: 100-240V AC 50/60Hz (DC: 9-23V)
- Motor Load: 10A/2200W/Gang 40A/8800W/Total
- Wireless Frequency: WiFi 2.4GHz
- Wi-Fi Standard:IEEE802.11 b/g/n 2.4GHz(2400M-2483.5M)
- Casing Material: PC v0 (Polycarbonate)
- Working Temperature: -10°C to 40°C
- Security Mechanism: WPA/WPA2
- Product Dimensions: 145mm x 90mm x 34mm
- Product Model: 4CHR3
- Voltage: 100 - 240V AC 50/60Hz
- Motor Load: 10A/2200W/Gang 16A/3500W/Total
- Wireless Frequency: WiFi 2.4GHz
- Wi-Fi Standard:IEEE802.11 b/g/n 2.4GHz(2400M-2483.5M)
- Casing Material: PC v0 (Polycarbonate)
- Working Temperature: -10°C to 40°C
- Security Mechanism: WPA/WPA2
- Product Dimensions: 145mm x 90mm x 34mm
Turn Your Traditional Home into a Smart Home with Logixer
Bring intelligent automation to your home with Logixer’s smart switch technology — perfect for DIY upgrades, renovations, or new smart projects. Control multiple appliances, lights, and devices with ease, right from your phone or voice assistant.
Remote
Control
Smart
Scene
Voice
Control
Share
Control
Sync
Status
Timing
Schedule

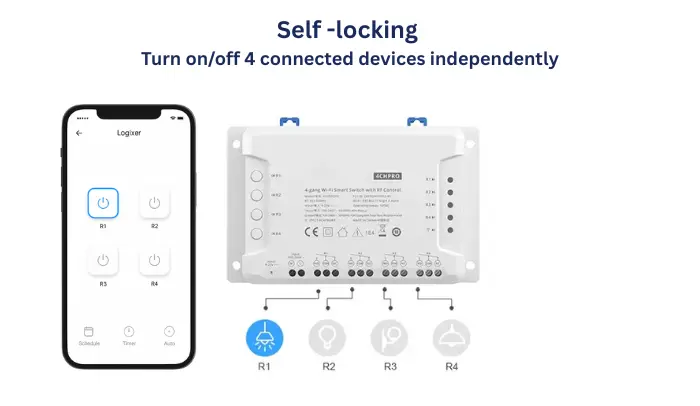

Independent Control with Self-Locking Mode
The Logixer 4-Channel Smart Switch with Self-Locking Mode lets you independently control four devices—perfect for managing lights, fans, pumps, or motors from a single unit. Each relay (R1 to R4) can be switched ON or OFF individually using the mobile app, RF remote, or voice commands via Alexa and Google Assistant, offering smart, flexible control across your home or workspace.

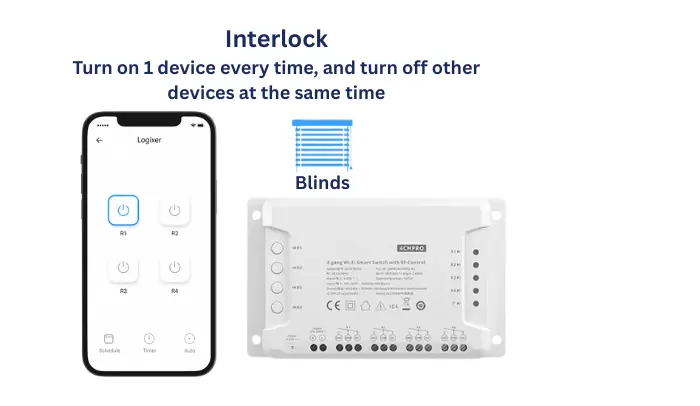

Smart Switching with Interlock Mode
With Interlock Mode on the Logixer 4-Channel Smart Switch, only one device remains ON at a time, while the others automatically switch OFF. You can control the switch via the mobile app, RF remote, or voice assistants . Whether you're toggling between “Up” and “Down” or managing multi-channel motor systems, Interlock Mode ensures safe and conflict-free operation with a single tap.

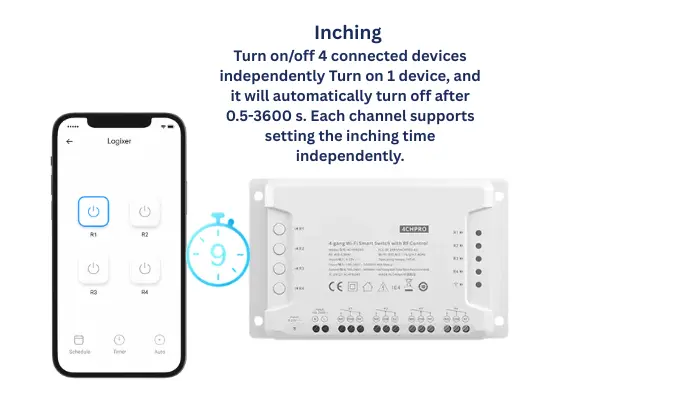

Precision Timing with Inching Mode
With Inching Mode, the Logixer 4-Channel Smart Switch automatically powers a device for a set time (0.5 to 3600 seconds), then switches it off—ideal for momentary tasks like gate control, buzzers, or timed lighting. Easily trigger any relay (R1–R4) via the mobile app, RF remote, or voice assistant, with no manual reset needed.
Ideal Applications
Control 4 Devices Independently with Self-Locking Mode
Manage each connected light or appliance separately through the Logixer app—perfect for creating a personalized and flexible smart living space.
Auto-Off Control with Inching Mode
Set your lights or devices to stay ON for a few seconds or minutes, then automatically turn OFF—ideal for hallways, gates, buzzers, or timed tasks. No need to fumble in the dark or remember to switch off again.
Smart Control with Interlock Mode – One Channel at a Time
Automate devices like garage doors, blinds, or fans with ease. With Interlock Mode on the Logixer 4-Channel Smart Switch, activating one channel automatically turns off the others—ensuring smooth, safe operation for motor-based systems.
Voice Control Your Smart Home with Ease
Effortlessly control your lights and appliances using voice commands through Alexa or Google Assistant. Just say the word—Logixer responds instantly.

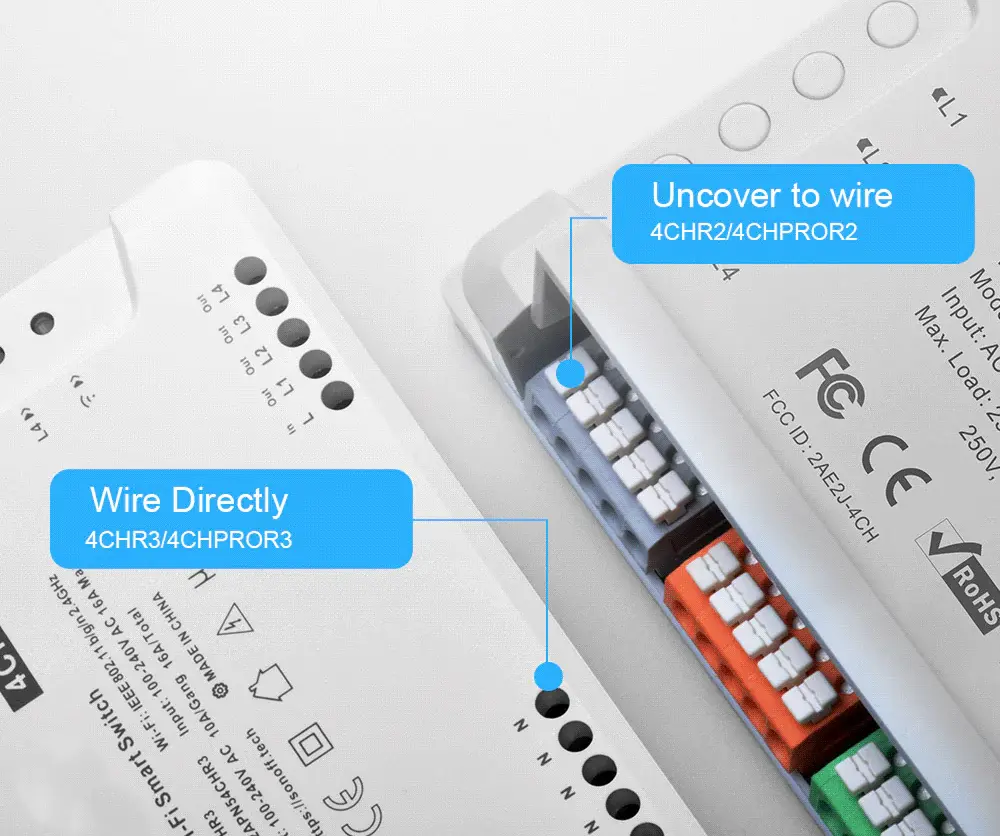

Built for Safety & Convenience
Logixer’s 4CHPROR3 and 4CHR3 Smart Switches feature a flame-retardant PC shell for enhanced safety. Unlike older models, these versions allow direct wiring without opening the case, simplifying installation while ensuring reliable, long-term performance. Safe, smart, and installer-friendly.
Why Buy from Logixer?
At Logixer, we offer cutting-edge smart automation products backed by:
Smarter Switching Starts Here — Get Your Smart DIN Rail Switch Now!
Effortlessly automate lighting, appliances, pumps, and more with Logixer’s 4-Channel Smart DIN Rail Switch. Built for precision and convenience, it’s the ideal solution for streamlined smart control across homes, offices, and industrial setups.
