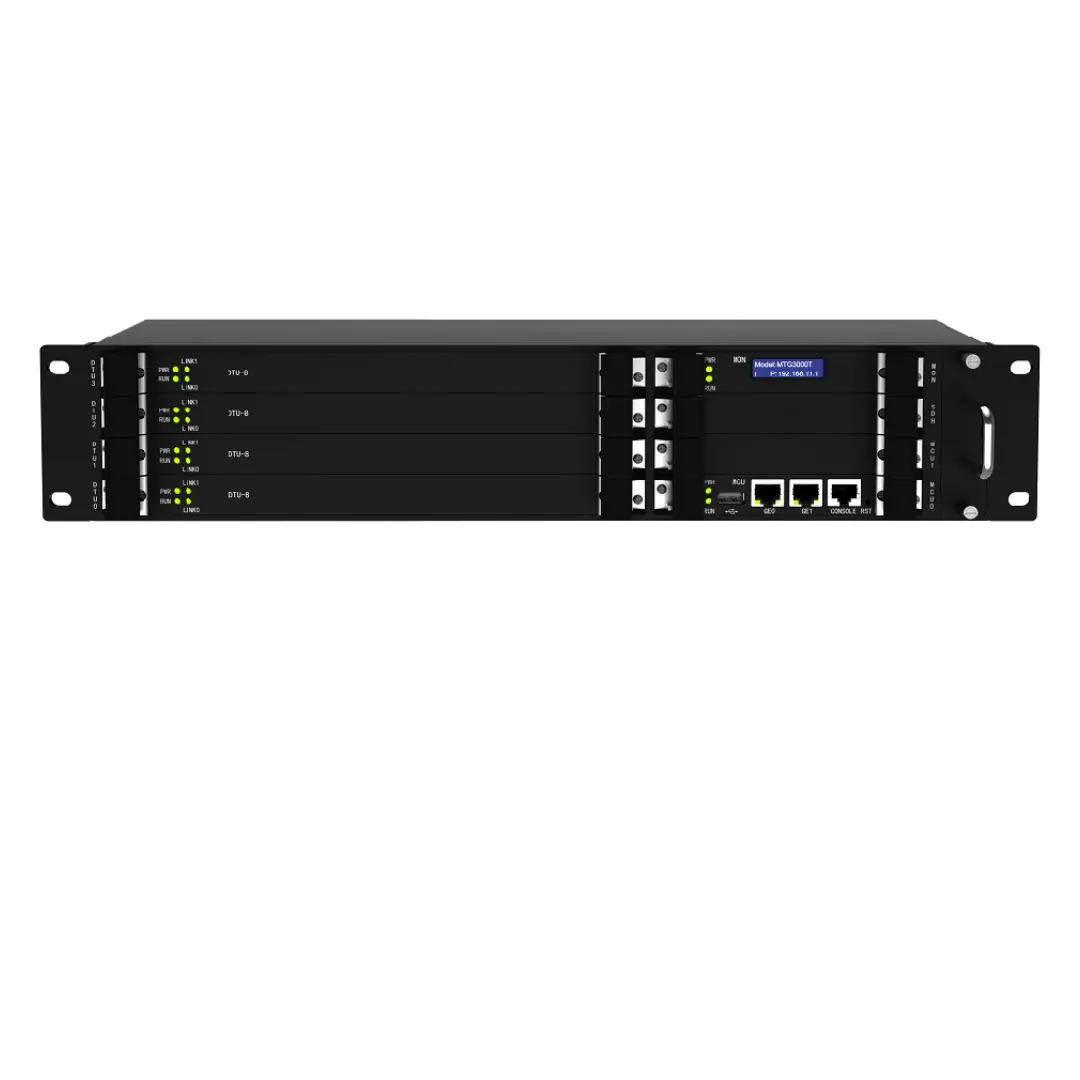

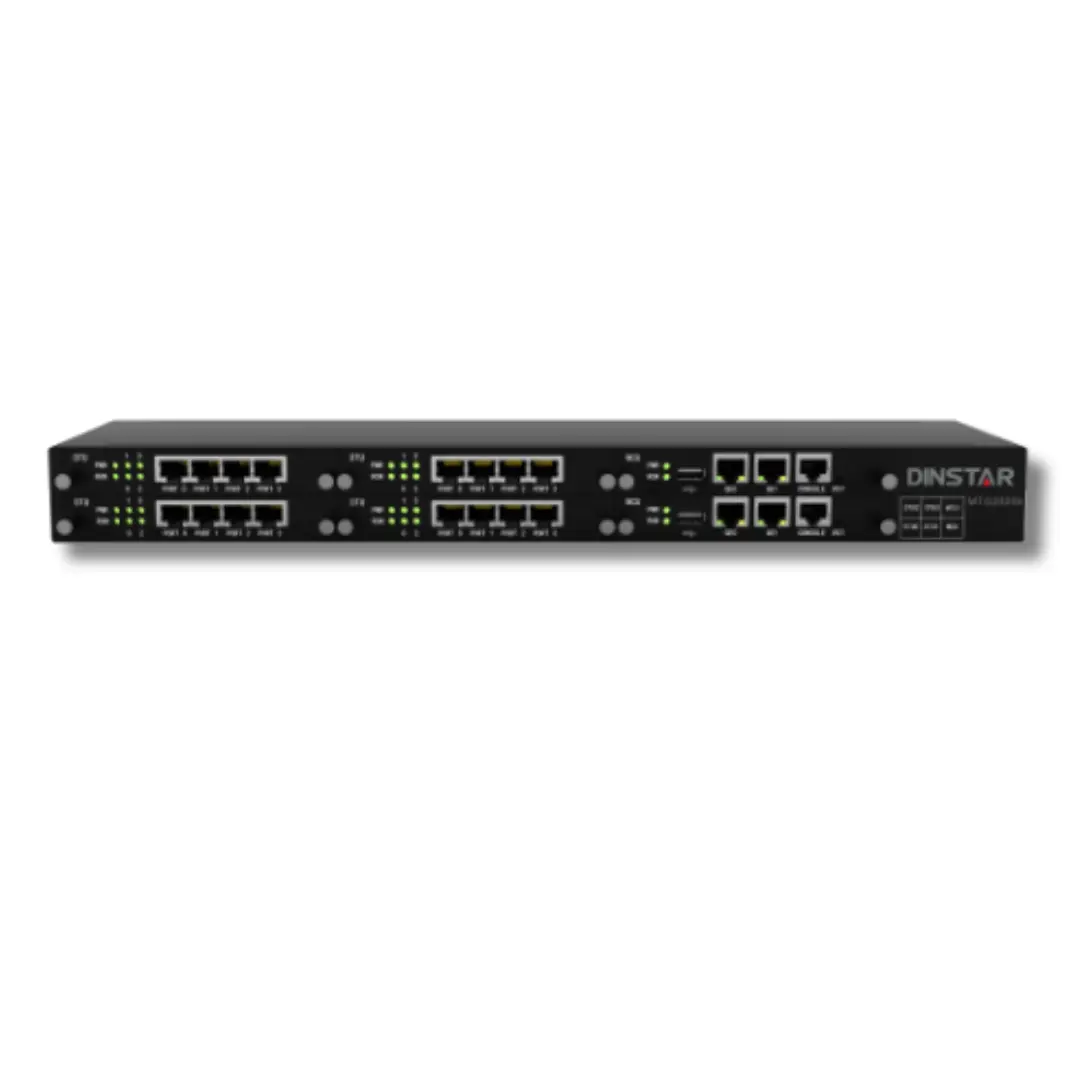

Dinstar MTG3000T
Digital VoIP Gateway
Supplier in Dubai
High Density Trancoding Gateway
At Logixer, we supply the Dinstar MTG3000T High-Density Transcoding Gateway in Dubai, UAE — a flexible, high-performance solution offering up to 1568 transcoding sessions. It seamlessly converts multiple simultaneous channels among popular voice codecs such as G.711A/U, G.723.1, G.729A/B, iLBC, G.726, and AMR from IP to IP, ensuring smooth interoperability between telecom systems with exceptional reliability.
Contact Now
Gigabit Ports
NGN/IMS
Multi-codecs
SNMP
SIP-SIP
T.38/T.30
High Capacity Transcoding Gateway
- Transcoding from IP to IP
-
Up to 2048 VoIP Sessions
- Dual Power Supplies
- Scalable by 4 DTUs Boards
- Multiple SIP Trunks
- Fully compatible with mainstream VoIP platforms
Easy to Use & Manage

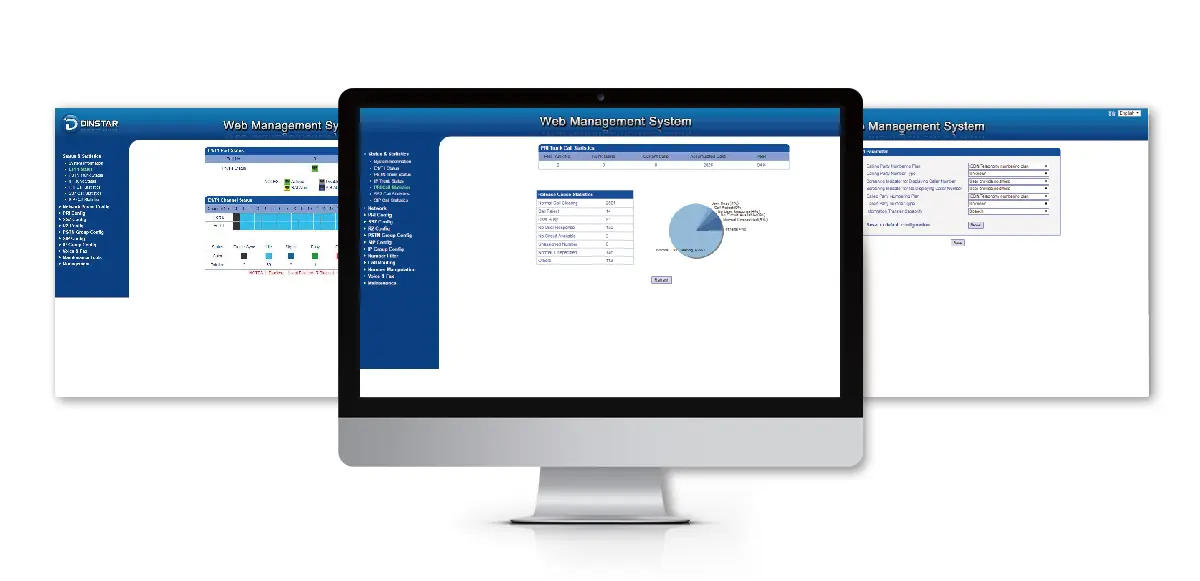

Intuitive Web Interface
Supports SNMP
Automated Provisioning
Dinstar Cloud Management System
Configuration Backup & Restore
Advanced Debug Tools
Rich Experiences on PSTN Protocols
2U Size
T.38 and Pass-through fax
Support modem and POS machines
Flexible dialling rules, thus adapting to different requirements of different environments.
More than 10-year experiences to integrate with a wide range of Legacy PBXs/Service providers' PSTN networks
Features
Supports up to 1568 transcoding sessions with multiple codec conversions for seamless IP-to-IP interoperability. Ensures carrier-grade reliability and performance.
Up to 4 Digital Processing Unit (DTU)
SIP Trunk Groups
2 GE ports
256 SIP trunks
Redundant Power Supply
Outbound Proxy supported
G.711—G.711: 2048 sessions
G.711—G.729: 1568 sessions
G.711—G.723: 1344 sessions
G.711—G.726: 2048 sessions
G.711—iLBC: 960 sessions
G.711— AMR: 832 sessions
G.723—G.729: 896 sessions
Firmware Upgrade via TFTP/FTP/HTTP
Support configuration backup/restore
Local maintenance via console
SIP, SIP-T
SIP Trunk Work Mode: Peer/Access
Call test
SIP/IMS Registration: with up to 256 SIP Accounts
Network capture
NAT: Dynamic NAT, Rport
Signaling hunter
Maximum 256 SIP accounts
Caller/Called Number Black lists
Voice codecs: G.711a/μ law,G.723.1,G.729A/B, iLBC, AMR
Caller/Called Number White lists
FAX: T.38 and Pass-through
IP access rule list
Support Modem/POS
Cloud based management system
Web GUI Configuration
SNMP
Up to 4 Digital Processing Unit (DTU)
SIP Trunk Groups
2 GE ports
256 SIP trunks
Redundant Power Supply
Outbound Proxy supported
G.711—G.711: 2048 sessions
G.711—G.729: 1568 sessions
G.711—G.723: 1344 sessions
G.711—G.726: 2048 sessions
G.711—iLBC: 960 sessions
G.711— AMR: 832 sessions
G.723—G.729: 896 sessions
Firmware Upgrade via TFTP/FTP/HTTP
Support configuration backup/restore
Local maintenance via console
SIP, SIP-T
SIP Trunk Work Mode: Peer/Access
Call test
SIP/IMS Registration: with up to 256 SIP Accounts
Network capture
NAT: Dynamic NAT, Rport
Signaling hunter
Maximum 256 SIP accounts
Caller/Called Number Black lists
Voice codecs: G.711a/μ law,G.723.1,G.729A/B, iLBC, AMR
Caller/Called Number White lists
FAX: T.38 and Pass-through
IP access rule list
Support Modem/POS
Cloud based management system
Web GUI Configuration
SNMP
Reliable Dinstar MTG3000T Digital VoIP Gateway Supplier in Dubai
Upgrade your telecom network with the Dinstar MTG3000T — contact Logixer today for the best deals in Dubai!
