Dinstar MTG1000 Digital VoIP Gateway Supplier in Dubai
At Logixer, we supply the Dinstar MTG1000 Series E1/T1 Digital VoIP Gateways with 1 or 2 E1/T1 ports, providing a compact and cost-effective solution to interconnect PSTN and IP networks. Designed with robust hardware, the MTG1000 offers comprehensive PSTN access capabilities along with SIP-to-SIP interworking, ensuring seamless communication between different systems.
With its high-efficiency design and powerful DSP processor, the MTG1000 delivers exceptional performance in converting PCM voice signals into IP packets, even under full capacity. It is fully interoperable with mainstream VoIP platforms and compatible with PSTN networks using digital trunk interfaces such as ISDN PRI, SS7, and R2 MFC, backed by Dinstar’s proven expertise.
Contact Now
E1/T1
NGN/IMS
PRI
SNMP
SS7
T.38/T.30
Cost-effective VoIP Trunk Gateway
- 1/2 ports E1/T1 in 1U chassis
- Dual Power Supplies
- Up to 60 simultaneous calls
- Flexible routing
- Multiple SIP trunks
- Fully compatible with mainstream VoIP platforms
Easy to Use & Manage

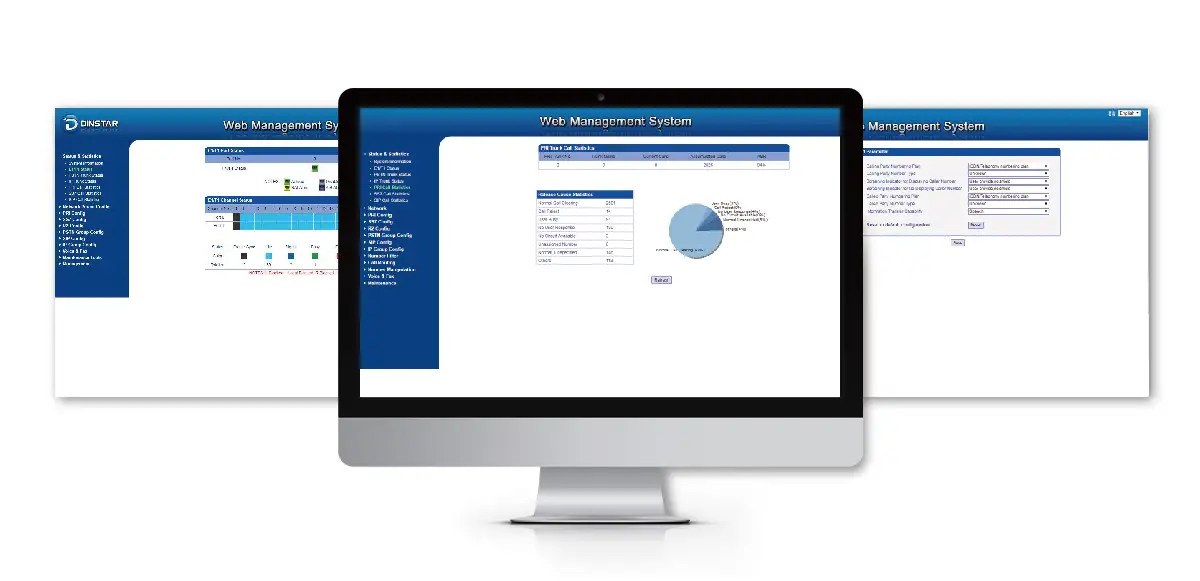

Intuitive Web Interface
Supports SNMP
Automated Provisioning
Dinstar Cloud Management System
Configuration Backup & Restore
Advanced Debug Tools
Rich Experiences on PSTN Protocols
ISDN PRI
ISDN SS7, SS7 links redundancy
R2 MFC
T.38 and Pass-through fax
Support modem and POS machines
More than 10-year experiences to integrate with a wide range of Legacy PBXs / Service providers' PSTN networks
Features
Seamlessly migrate legacy PSTN networks to VoIP with the MTG200 Series Digital VoIP Gateway. Compact, cost-effective, and easy to integrate.
1/2 E1s/T1s, RJ48 interface
Codecs:G.711a/μ law,G.723.1, G.729A/B, iLBC 13k/15k,AMR
Dual Power Supplies
Silence Suppression
2 GE
Comfort Noise
SIP v2.0
Voice Activity Detection
SIP-T,RFC3372, RFC3204, RFC3398
Echo Cancellation (G.168),with up to 128ms
IP Trunk Priority
NTP Synchronization
Radius
Centralized Management System
Access Rule Lists
Call History Records via Syslog
Syslog: Debug, Info, Error, Warning , Notice
SIP Trunk Work Mode: Peer/Access
Adaptive Dynamic Buffer
SIP/IMS Registration :with up to 256 SIP Accounts
Voice, Fax Gain Control
NAT: Dynamic NAT, Rport
FAX:T.38 and Pass-through
Flexible Route Methods: PSTN-PSTN, PSTN-IP, IP-PSTN
Support Modem/POS
Intelligent Routing Rules
DTMF Mode: RFC2833/SIP Info/In-band
Call Routing base on Time
Clear Channel/Clear Mode
Call Routing base on Caller/Called Prefixes
ISDN PRI, Q.sig Signal 7/SS7: ITU-T, ANSI, ITU-CHINA, MTP1/MTP2/MTP3, TUP/ISUP
256 Route Rules for each Direction
Caller and Called Number Manipulation
R2 MFC
Local/Transparent Ring Back Tone
Web GUI Configuration
Overlapping Dialing
Data Backup/Restore
Dialing Rules, with up to 2000
PSTN Call Statistics
PSTN group by E1 port or E1 Timeslot
SIP Trunk Call Statistics
IP Trunk Group Configuration
Firmware Upgrade via TFTP/Web
Voice Codecs Group
SNMP v1/v2/v3
Caller and Called Number White Lists
Network Capture
Caller and Called Number Black Lists
1/2 E1s/T1s, RJ48 interface
Codecs:G.711a/μ law,G.723.1, G.729A/B, iLBC 13k/15k,AMR
Dual Power Supplies
Silence Suppression
2 GE
Comfort Noise
SIP v2.0
Voice Activity Detection
SIP-T,RFC3372, RFC3204, RFC3398
Echo Cancellation (G.168),with up to 128ms
IP Trunk Priority
NTP Synchronization
Radius
Centralized Management System
Access Rule Lists
Call History Records via Syslog
Syslog: Debug, Info, Error, Warning , Notice
SIP Trunk Work Mode: Peer/Access
Adaptive Dynamic Buffer
SIP/IMS Registration :with up to 256 SIP Accounts
Voice, Fax Gain Control
NAT: Dynamic NAT, Rport
FAX:T.38 and Pass-through
Flexible Route Methods: PSTN-PSTN, PSTN-IP, IP-PSTN
Support Modem/POS
Intelligent Routing Rules
DTMF Mode: RFC2833/SIP Info/In-band
Call Routing base on Time
Clear Channel/Clear Mode
Call Routing base on Caller/Called Prefixes
ISDN PRI, Q.sig Signal 7/SS7: ITU-T, ANSI, ITU-CHINA, MTP1/MTP2/MTP3, TUP/ISUP
256 Route Rules for each Direction
Caller and Called Number Manipulation
R2 MFC
Local/Transparent Ring Back Tone
Web GUI Configuration
Overlapping Dialing
Data Backup/Restore
Dialing Rules, with up to 2000
PSTN Call Statistics
PSTN group by E1 port or E1 Timeslot
SIP Trunk Call Statistics
IP Trunk Group Configuration
Firmware Upgrade via TFTP/Web
Voice Codecs Group
SNMP v1/v2/v3
Caller and Called Number White Lists
Network Capture
Caller and Called Number Black Lists
Reliable Dinstar MTG1000 Digital VoIP Gateway Supplier in Dubai
Upgrade your telecom network with the Dinstar MTG1000 — contact Logixer today for the best deals in Dubai!
