Dinstar DAG2500 – High-Density 48/72/96 FXS Analog VoIP Gateway
Buy Dinstar DAG2500 in Dubai, UAE from Logixer – High-density analog VoIP gateway with up to 96 FXS ports in a compact 1U design. Perfect for enterprises, hospitality, and service providers.
The Dinstar DAG2500 Series is a high-density analog VoIP gateway that provides up to 96 FXS ports in a 1U rackmount design, making it the most space-efficient analog VoIP gateway available. Designed for businesses migrating to all-IP unified communications while retaining their investment in legacy analog devices, the DAG2500 connects analog phones, fax machines, modems, and PSTN lines to SIP trunks, IP PBXs, softswitches, and hosted UC platforms.
With broad interoperability, carrier-grade reliability, and easy centralized management, the DAG2500 is the ideal solution for hospitality, apartment complexes, hospitals, schools, campuses, and telecom service providers.
48/72/92 FXS
NGN/IMS
3 Way Conference
T.38/T.30
TLS/SRTP
VLAN
Key Features & Benefits
Ultimate High-Density Design

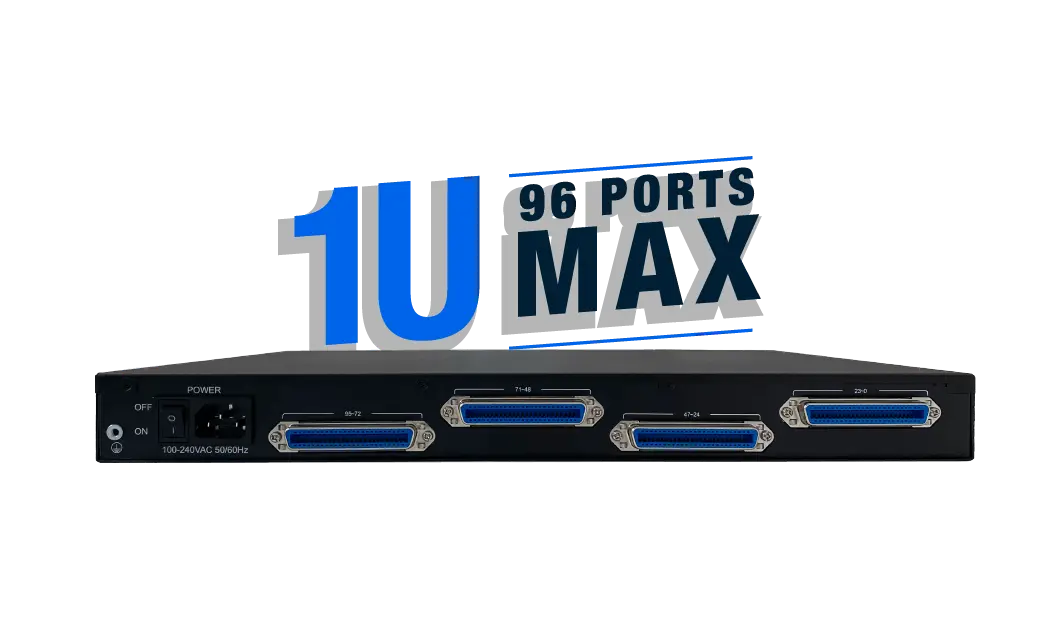

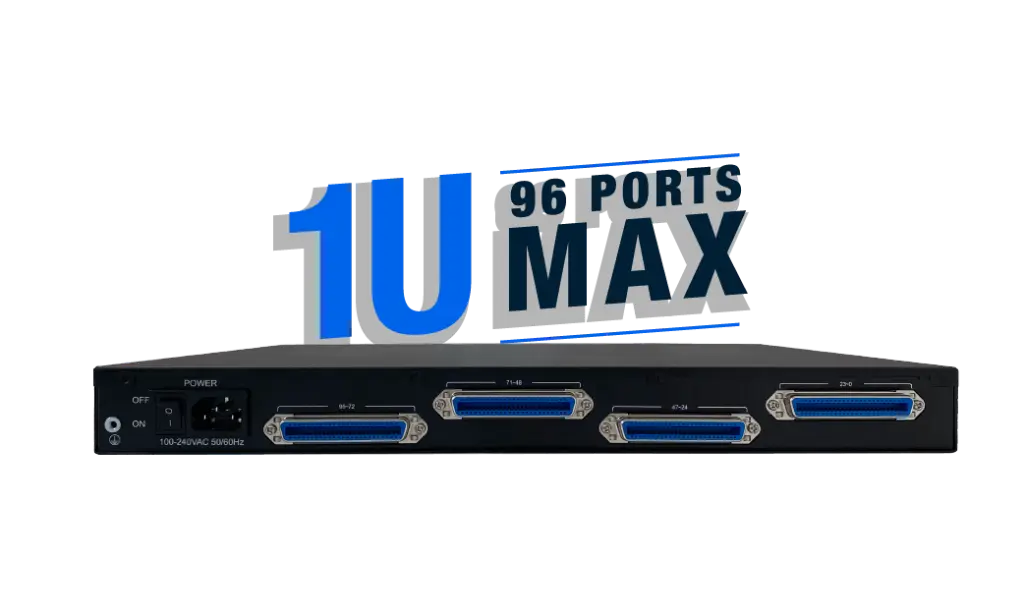

- Up to 96 FXS ports in a compact 1U chassis
- Port options: 48 / 72 / 96 FXS
- Interface options: RJ21 (50-pin telco), RJ45 & DB37
- Saves rack space and deployment cost
High Reliability for Carrier-Grade Networks
- Proven hardware design for continuous uptime
- Dual Gigabit Ethernet (bonded) with failover & load balancing
- Optional redundant power supplies (48/72-port models)

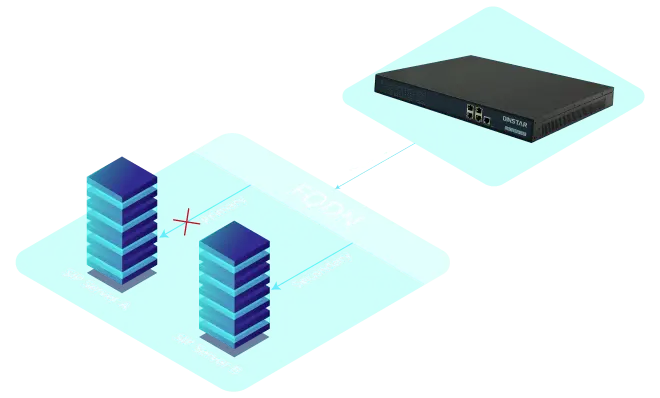

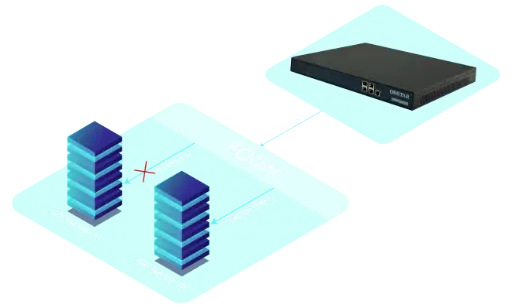

- Multiple SIP server failover & failover dial plan
Full VoIP Features & Compatibility
- SIP v2.0 protocol, interoperable with leading IP PBXs, SIP servers & softswitches
- HD voice quality with multiple codec support (G.711, G.729, iLBC, AMR, etc.)
- Supports Voice, Fax (T.38 & T.30), and Modem/POS devices
- QoS, VLAN, VPN, IPv4/IPv6 support
- Flexible routing & dial plan configuration
Simplified Deployment &Management
- Easy web interface with quick setup wizard
- Auto-provisioning for large-scale rollouts
- Remote management via SNMP & TR-069
- Dinstar Cloud NMS – manage, monitor, and maintain devices in bulk
Features
- Digit Map
- IMPU
- Action URL
- Voicemail
- Custom IVR
- Call Holding
- Call Waiting
- Do-not-disturb
- Blind Transfer
- Attend Transfer
- Call Forward on Busy
- Call Forward on No Reply
- Ringing Group, Hotline
- 3-way Conference
- Early Media/Early Answer
- Abbreviated Dialing
- Access and Peer Mode
- SIP PnP Auto Provisioning
- PBX IVR
- Unconditional Call Forward
- SIP registration to different servers
- Flexible Call Routing Policy
- Caller/Called Number Manipulation
- Recording
- T.38/Pass-through
- Modem/POS
- Silence Suppression
- Bandwidth Optimization
- Comfort Noise Generation(CNG)
- Voice Activity Detection(VAD)
- Packet Loss Concealment
- Adaptive (Dynamic) Jitter Buffer
- Programmable Gain Control
- G.711A/U law, G.723.1, G.729A/B, G.726, iLBC, AMR, AMR-GSM
- DTMF mode: Signal/RFC2833/INBAND
- Echo Cancellation(G.168), with up to 128ms
Features
- Digit Map
- IMPU
- Action URL
- Voicemail
- Custom IVR
- Call Holding
- Call Waiting
- Do-not-disturb
- Blind Transfer
- Attend Transfer
- Call Forward on Busy
- Call Forward on No Reply
- Ringing Group, Hotline
- 3-way Conference
- Early Media/Early Answer
- Abbreviated Dialing
- Access and Peer Mode
- SIP PnP Auto Provisioning
- PBX IVR
- Unconditional Call Forward
- SIP registration to different servers
- Flexible Call Routing Policy
- Caller/Called Number Manipulation
- Recording
- T.38/Pass-through
- Modem/POS
- Silence Suppression
- Bandwidth Optimization
- Comfort Noise Generation(CNG)
- Voice Activity Detection(VAD)
- Packet Loss Concealment
- Adaptive (Dynamic) Jitter Buffer
- Programmable Gain Control
- G.711A/U law, G.723.1, G.729A/B, G.726, iLBC, AMR, AMR-GSM
- DTMF mode: Signal/RFC2833/INBAND
- Echo Cancellation(G.168), with up to 128ms
Upgrade to high-capacity VoIP infrastructure with the Dinstar DAG2500 Series from Logixer
Delivering 48/72/96-port scalability, carrier-grade reliability, and secure telephony integration in the UAE.
Contact Logixer today for enterprise deployments, reseller packages, and large-scale VoIP rollout solutions in Dubai and across the UAE.
