What is the Dell PowerEdge XE9712 AI Server?
The Dell PowerEdge XE9712 is built for organizations that require the absolute pinnacle of hyperscale AI compute — NVIDIA GB300 NVL72 rack-scale infrastructure with Grace CPUs, massive unified memory, and 800Gb/s GPU-to-network connectivity.
Deployed as a Dell Integrated Rack Scalable System (IRSS) with the IR9048 rack, the XE9712 combines future-proof technology, advanced power and cooling, and the fastest time-to-value for AI factory builds. With 5th Gen NVLink GPU-to-GPU interconnect, 900GB/s NVLink CPU-GPU coherent memory, and support for both Air Cooling and Direct Liquid Cooling (DLC), the XE9712 gives AI-first organizations in Dubai and UAE everything they need to build, train, and deploy the world’s most advanced AI models.
It is ideal for:
- AI factory builds for cloud, co-location, and hyperscale providers in UAE
- Organizations training frontier-scale large language models (LLMs)
- Enterprises deploying real-time AI inferencing at hyperscale GPU density
- Government and national AI research programs in Dubai and UAE
- High-performance computing (HPC) and scientific simulation centers
- Finance, healthcare, and energy enterprises running next-generation AI platforms
- Telecommunications and smart infrastructure AI deployments across GCC
Why Dell PowerEdge XE9712 is the Ultimate
Hyperscale AI Server for UAE
Key Advantages:
- First-to-market NVIDIA GB300 NVL72 rack-scale IRSS deployment
- 72 NVIDIA Blackwell Ultra GPUs per IR9048 rack for maximum AI compute density
- 36 ARM NVIDIA Grace CPUs (72 cores each) per rack
- 40TB unified coherent memory per full rack — handles the world’s largest AI models
- 900GB/s NVLink CPU-GPU coherent memory per sled
- 800Gb/s ConnectX-8 per GPU for ultra-fast data transfer and AI workload throughput
- 5th Gen NVLink + NVSwitch for GPU-to-GPU interconnect across the rack
- Air Cooling AND Direct Liquid Cooling (DLC) options — flexible for UAE data centers
- Managed via Aspeed AST2600 BMC and OpenBMC for open, vendor-neutral management
- Dell IRSS pre-integrated design — fastest time-to-value for AI factory deployment
Enterprise Security & Reliability
The Dell PowerEdge XE9712 delivers enterprise-grade security and reliability for regulated industries and government AI programs across the UAE:
- Aspeed AST2600 BMC with DC-SCI compatibility for secure baseboard management
- OpenBMC — transparent, open-source firmware management
- Secure Boot and firmware integrity protection
- 54VDC centralized power with 33kW redundant power shelf (PS33)
- Grace OS — certified, hardened OS environment for ARM AI infrastructure
Perfect for:
- UAE Government AI programs and national digital transformation initiatives
- Financial institutions and central banking AI infrastructure
- Healthcare AI research and regulated enterprise environments
- National research centers and university supercomputing facilities
- Cloud and co-location providers in Dubai and UAE
Best Use Cases for Dell PowerEdge XE9712 in UAE
The XE9712 is the definitive server for the most demanding AI and HPC workloads in Dubai and across the UAE:
- Frontier-scale AI model training and LLM development (GPT-scale and beyond)
- Massive-scale AI inferencing and model serving pipelines
- Large Language Model (LLM) fine-tuning and RLHF
- AI factory infrastructure for cloud and co-location providers in UAE
- National AI research programs and supercomputing centers
- Generative AI platform development at hyperscale
- Scientific simulation, climate modeling, and genomics research
- Financial AI — risk modeling, fraud detection, and algorithmic trading
- Smart city AI infrastructure and government digital transformation in Dubai
- Healthcare AI — medical imaging, drug discovery, and clinical AI pipelines
Deployment & Support in UAE
When you choose Logixer for your Dell PowerEdge XE9712 IRSS AI factory in Dubai, you receive complete end-to-end infrastructure services:
- Complete IRSS rack-scale planning and UAE data center site preparation
- On-site installation, cabling, power busbar, and liquid cooling commissioning
- AI workload optimization and GPU cluster configuration
- Integration with existing cloud, HPC, and on-premise IT infrastructure
- Data center deployment support across Dubai, Abu Dhabi, Sharjah, and GCC
- AMC and long-term maintenance contracts
- UAE-based certified Dell technical experts available 24/7
Why Choose Logixer for AI Servers in Dubai UAE
Logixer stands out as a trusted partner for AI server deployment in Dubai, UAE, delivering enterprise-grade infrastructure backed by proven expertise and reliable support. With a strong focus on Dell AI technologies and IRSS-based deployments, Logixer ensures high-performance, scalable, and secure solutions tailored for modern AI workloads. From genuine hardware supply to advanced rack-scale planning, liquid cooling integration, and dedicated UAE-based technical support, businesses benefit from a complete, end-to-end service approach designed for efficiency, reliability, and long-term growth.
Trusted Dell AI infrastructure and IRSS deployment specialist in UAE
Genuine Dell hardware with full warranty coverage
Competitive AED pricing & fast regional delivery
Complete IRSS rack-scale planning and liquid cooling integration
UAE-based certified Dell technical support team
AMC & long-term service contracts available
Corporate, enterprise, government & AI cloud provider procurement supported
Features - Dell PowerEdge XE9712
NVIDIA GB300 NVL72 — The World’s Most Powerful AI Rack
The Dell PowerEdge XE9712 deployed
in the IR9048 IRSS is the definitive implementation of NVIDIA GB300 NVL72 —
delivering 72 NVIDIA Blackwell Ultra GPUs and 36 Grace CPUs in a single 48 RU
rack. For enterprises in Dubai and UAE that demand the absolute maximum in AI
compute density, the XE9712 is the only choice. Contact Logixer in Dubai to
design your custom AI factory configuration.
40TB Unified Coherent Memory Per Rack
With 288GB HBM3e per GPU and 480GB
LP DDR5X ECC per CPU, unified via NVLink coherent memory interconnect, the
XE9712 delivers 40TB of total addressable memory per full IR9048 rack. This
unified memory architecture enables AI models and datasets of unprecedented
scale to run without memory bottlenecks — a critical advantage for frontier LLM
training and scientific simulation in UAE data centers.
800Gb/s ConnectX-8 Per GPU — Massive IO
Every Blackwell Ultra GPU in the XE9712 is connected at 800Gb/s via NVIDIA ConnectX-8 — delivering the highest available GPU-to-network bandwidth for any enterprise AI server. This eliminates data transfer bottlenecks for AI training pipelines that consume massive datasets, making the XE9712 the ideal AI factory server for data-intensive workloads across Dubai and UAE.
5th Gen NVLink + NVSwitch GPU-to-GPU Interconnect
Fifth Generation NVLink and NVSwitch deliver ultra-high-bandwidth, low-latency GPU-to-GPU communication across all 72 Blackwell GPUs in the rack. This ensures peak collective communication efficiency during distributed AI training — enabling faster model convergence and reducing total training time for frontier-scale LLMs and multimodal AI models deployed in UAE.
Dual Cooling Options — Air Cooling & Direct Liquid Cooling (DLC)
The XE9712 uniquely supports both
Air Cooling and Direct Liquid Cooling (DLC), giving UAE data center operators
the flexibility to choose the right cooling strategy for their existing
infrastructure. DLC maximizes performance-per-watt for the highest GPU TDP
workloads, while air cooling supports standard data center environments across
Dubai, Abu Dhabi, and the GCC region.
Dell IRSS — Pre-Integrated, Fastest Time-to-Value
Deployed as a Dell Integrated Rack
Scalable System (IRSS) with the IR9048 rack, the XE9712 arrives pre-integrated
with power, cooling, and networking — dramatically reducing deployment
complexity and time-to-value. For enterprises in Dubai and UAE that need AI
infrastructure operational fast, the IRSS design means going from delivery to production
AI workloads in the shortest time possible, with full support from Logixer’s
UAE-based team.
OpenBMC — Open, Vendor-Neutral Server Management
The XE9712 uses OpenBMC — an
open-source, vendor-neutral baseboard management controller framework —
alongside the Aspeed AST2600 BMC. This gives UAE IT teams full transparency and
flexibility in managing their hyperscale AI infrastructure, with no vendor lock-in
for management tooling. OpenBMC is the preferred management platform for
hyperscale and AI factory deployments globally.
Grace OS — Optimized for ARM-Based AI Infrastructure
The XE9712 runs Grace OS —
purpose-built for NVIDIA Grace CPU-based systems — delivering an OS environment
fully optimized for ARM-based AI and HPC workloads. Grace OS provides a
certified, stable foundation for deploying AI software stacks including
PyTorch, JAX, and NVIDIA CUDA-based frameworks on Blackwell Ultra GPUs, ensuring
maximum compatibility and performance for UAE enterprise AI deployments.
SPECIFICATIONS
Processor
- Two NVIDIA Grace with 72 cores per processor
Operating System
- Grace OS
Accelerators
4 Blackwell Ultra GPU’s
900GB/s of coherent memory through NVLINK CPU-GPU interconnect
Memory
- DIMM Speed : Up to 5200 MT/s
- Memory Type : LP DDR5X memory with error-correction code (ECC)
- Memory Module Slots : NA
- Maximum RAM :
480 GB of LP DDR5 memory with error-correction code (ECC) / CPU
288 GB HBM3e / GPU
Storage
- Front Bays : Up to 8 x EDSFF E1.S hot-swappable NVMe drives
Storage Controllers
- Boot Drives : 1 x M.2 Boot
Management
Embedded:
- Aspeed AST2600 BMC DC-SCI compatible
- OpenBMC
Power Supplies
- IR9048 rack consists of Power Shelf 33kW (PS33) that supports 6 x 5500 W AC PSUs
- PS33 supplies up to 54 VDC to the XE9712 through Power bus bar located on IR9048 rack
Fans : Eight standard cooling fans
Cooling specifications:
- Air cooling
- Direct Liquid Cooling (DLC)
Ports
Network Options : 1x 1GbE LOM

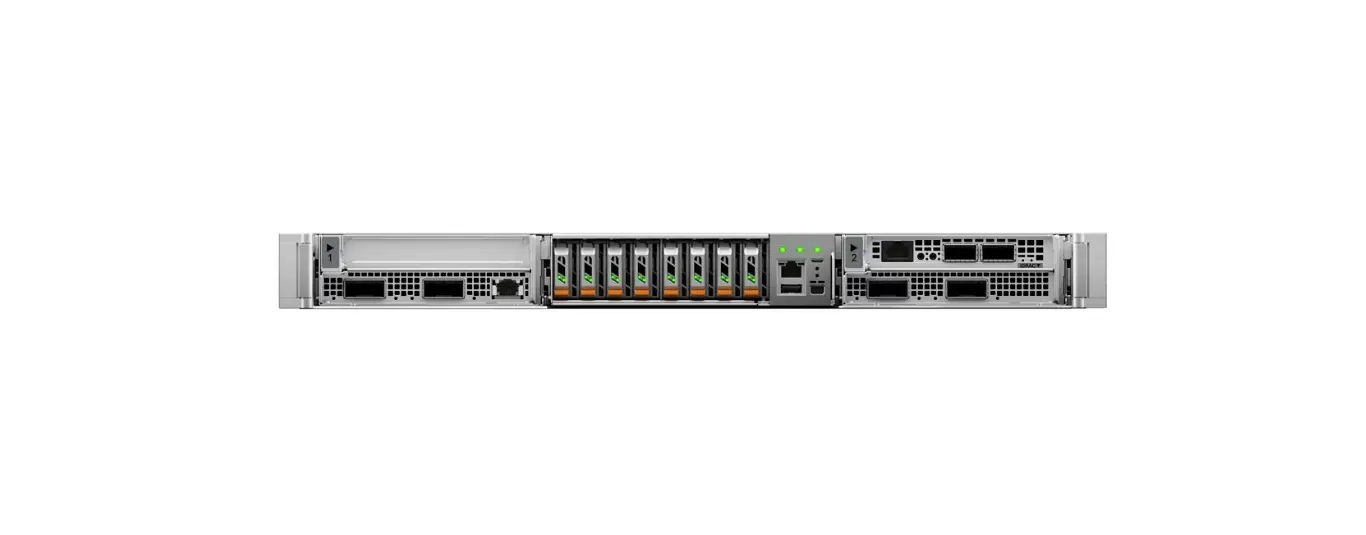

Front Ports :
- 1x USB3
- 1x RJ45 Mgmt LAN
- 1x miniDP
- 1x USB2.0 Micro Type-B
- 1x 1Gb LOM
Slots
PCIe :
- Up to 2 x FH HL Gen5, front risers only
- 2 x Mezzanine - Gen5/Gen6
PCIe Cards : 1 x BF3 SuperNIC Full Height Half Length
Form Factor
IR9048 is a 48 RU (Rack Units) rack , Each XE9712 sled is 1 RU
Note: 1 RU = 1.75 in. (44.45 mm) height, and 9 in.(438 mm) width.
Dimensions & Weight
- Height : 90.3" (2294 mm)
- Width : 29.52" (750 mm)
- Depth :
47.24" (1200 mm)
57.75" (1340 mm) with stablizers - Cabinet wet weight :
3505.35 pounds (1590 kg)
Rack Support
IR9048 is a 48 RU (Rack Units) rack
Each XE9712 sled is 1 RU
Note: 1 RU = 1.75" (44.45 mm) height, and 19" (482.6 mm) width.
FAQ
Dell PowerEdge R760xa AI Server
Q1: What is the Dell PowerEdge XE9712 and what is it used for?
The Dell PowerEdge XE9712 is a hyperscale AI factory server deployed in the Dell IR9048 Integrated Rack Scalable System (IRSS) in Dubai, UAE. Each 1 RU sled delivers 4 NVIDIA Blackwell Ultra GPUs and 2 NVIDIA Grace CPUs with 72 cores, and a full IR9048 rack provides 72 Blackwell GPUs, 36 Grace CPUs, and 40TB unified coherent memory. It is used for frontier-scale AI model training, large language model development, AI inferencing, HPC simulation, and AI factory builds. Available from Logixer — Dubai’s trusted Dell NVIDIA AI server supplier in the UAE.
Q2: How many GPUs does the Dell PowerEdge XE9712 support per rack?
The Dell PowerEdge XE9712 supports 72 NVIDIA Blackwell Ultra GPUs in a single IR9048 48 RU rack. Each 1 RU XE9712 sled houses 4 Blackwell Ultra GPUs, and the IR9048 rack accommodates up to 18 sleds, delivering 72 GPUs and 36 NVIDIA Grace CPUs per rack. With 800Gb/s ConnectX-8 per GPU and 5th Gen NVLink interconnect, this GPU density is unmatched for AI factory deployments in Dubai and the UAE. Contact Logixer to design your custom NVIDIA GB300 NVL72 AI factory configuration for your UAE data center.
Q3: What is NVIDIA GB300 NVL72 and why is it important for AI in UAE?
NVIDIA GB300 NVL72 is NVIDIA’s most advanced rack-scale AI infrastructure platform, combining 72 Blackwell Ultra GPUs and 36 Grace ARM CPUs into a single unified system with 40TB coherent memory. The Dell PowerEdge XE9712 is the enterprise deployment of GB300 NVL72, available in Dubai, UAE from Logixer. It is designed for frontier AI model training, massive-scale inferencing, and AI factory builds that no standard GPU server can match. For UAE enterprises and government organizations building next-generation AI infrastructure, the XE9712 with NVIDIA GB300 NVL72 is the definitive solution.
Q4: What is 40TB Unified Memory and why does it matter for AI workloads?
The Dell PowerEdge XE9712 delivers 40TB of unified coherent memory across a full IR9048 rack — combining 288GB HBM3e per GPU and 480GB LP DDR5X ECC per CPU, unified via NVLink coherent memory interconnect at 900GB/s. This means AI models and datasets of unprecedented scale can run without memory fragmentation or transfer bottlenecks. For UAE enterprises training frontier large language models, multimodal AI models, or running scientific simulations, 40TB of unified memory eliminates the biggest barrier to scaling AI workloads. Logixer in Dubai can advise on optimal workload configurations for your UAE deployment.
Q5: What cooling options are available on the Dell PowerEdge XE9712?
The Dell PowerEdge XE9712 uniquely supports both Air Cooling and Direct Liquid Cooling (DLC), giving UAE data center operators full flexibility. Air cooling integrates with standard data center environments across Dubai and the GCC, while Direct Liquid Cooling (DLC) maximizes performance-per-watt for the highest TDP GPU workloads and delivers significantly lower energy costs over time. The IR9048 rack features eight standard cooling fans per sled and a 33kW power shelf with centralized power distribution. Logixer provides full cooling assessment, DLC planning, and commissioning services for XE9712 IRSS deployments across the UAE.
Q6: What is 800Gb/s ConnectX-8 and how does it benefit AI server performance?
The Dell PowerEdge XE9712 provides 800Gb/s NVIDIA ConnectX-8 networking per Blackwell Ultra GPU — the highest GPU-to-network bandwidth available in any enterprise AI server. This eliminates data ingestion and inter-node transfer bottlenecks during large-scale AI training and distributed inferencing workloads. For UAE enterprises running data-intensive AI pipelines that ingest terabytes of training data per hour, 800Gb/s ConnectX-8 ensures GPUs are never starved for data. Combined with 5th Gen NVLink GPU-to-GPU interconnect, the XE9712 delivers unmatched IO performance for AI factories in Dubai and UAE.
Q7: How is the Dell PowerEdge XE9712 managed remotely?
The Dell PowerEdge XE9712 is managed via Aspeed AST2600 BMC with DC-SCI compatibility and OpenBMC — an open-source, vendor-neutral baseboard management framework preferred by hyperscale and AI factory operators globally. Front ports include USB 3.0 Type-A, USB 2.0 Micro Type-B, RJ45 Management LAN, Mini-DisplayPort, and 1GbE LOM for out-of-band management access. OpenBMC provides full hardware lifecycle visibility, power monitoring, thermal management, and firmware control. UAE IT teams managing XE9712 IRSS deployments from Logixer benefit from no vendor lock-in and full open-source management flexibility.
Q8: What operating system does the Dell PowerEdge XE9712 support?
The Dell PowerEdge XE9712 runs Grace OS — purpose-built for NVIDIA Grace ARM-based CPU systems. Grace OS is optimized to fully utilize the NVIDIA Grace CPU’s ARM architecture and its tight NVLink integration with Blackwell Ultra GPUs. It provides a certified, stable environment for deploying AI frameworks including PyTorch, JAX, NVIDIA CUDA, and other HPC software stacks on Blackwell Ultra GPUs. For enterprises and research institutions in Dubai and UAE deploying next-generation AI and HPC infrastructure, Grace OS ensures maximum performance, stability, and software ecosystem compatibility on the XE9712. Logixer assists with pre-configuration before UAE delivery.
Q9: What is the Dell IR9048 IRSS and how does it work with the XE9712?
The Dell IR9048 is a 48 RU standard rack that forms the foundation of the Dell Integrated Rack Scalable System (IRSS) for the PowerEdge XE9712. It provides centralized power via a 33kW Power Shelf (PS33) with six 5500W AC PSUs, delivering 54VDC to each XE9712 sled through an integrated power busbar. The IR9048 arrives pre-integrated with power, cooling, and networking infrastructure — dramatically reducing deployment complexity and time-to-value for AI factory builds in UAE. Logixer supplies the complete IR9048 + XE9712 IRSS solution in Dubai, UAE with full rack-scale deployment support across the GCC.
Q10: Why should UAE businesses buy the Dell PowerEdge XE9712 from Logixer in Dubai?
Logixer is a trusted Dell AI infrastructure supplier in Dubai, UAE, specializing in hyperscale IRSS deployments including the Dell PowerEdge XE9712. We deliver genuine Dell hardware with full warranty, competitive AED pricing, and complete rack-scale planning, IR9048 integration, liquid cooling commissioning, and long-term AMC support. Our UAE-based certified Dell engineers handle everything from data center site assessment to production go-live. We support corporate, enterprise, government, and AI cloud provider procurement across Dubai, Abu Dhabi, Sharjah, and the GCC. For NVIDIA GB300 NVL72 AI factory infrastructure in the UAE, Logixer is your definitive end-to-end partner.
